# Configuration

### Top navigation flyout

**Field type**:\
Select

**Available values**:\
• Shopware default\
• ThemeWare® Flyout\
• ThemeWare® Dropdown\*\
• ThemeWare® Flyout with cards\
• ThemeWare® Flyout with sidebar\
• ThemeWare® Flyout with teasers

**Example value**:\
`ThemeWare® Flyout`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout"

**Technical name**:\
`twt-nav-main-flyout`

{% hint style="info" %}
Choose how the submenus of the top navigation are displayed.

Each category can also override this globally via the category custom field "Top navigation flyout".
{% endhint %}

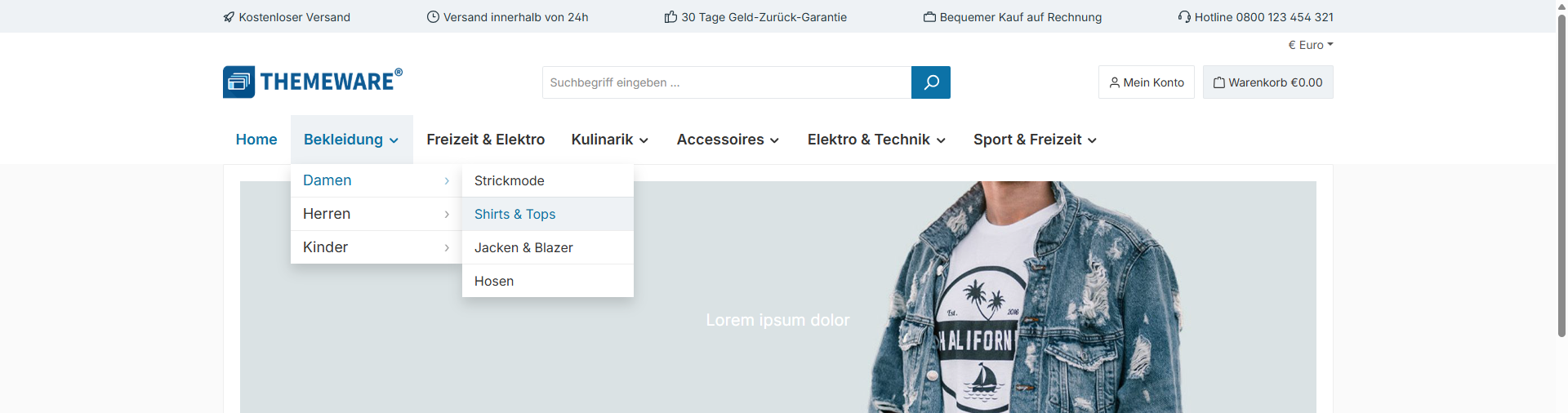

<figure><img src="/files/AbNPQslfXAUMD0GSGNfZ" alt=""><figcaption><p>ThemeWare® Dropdown</p></figcaption></figure>

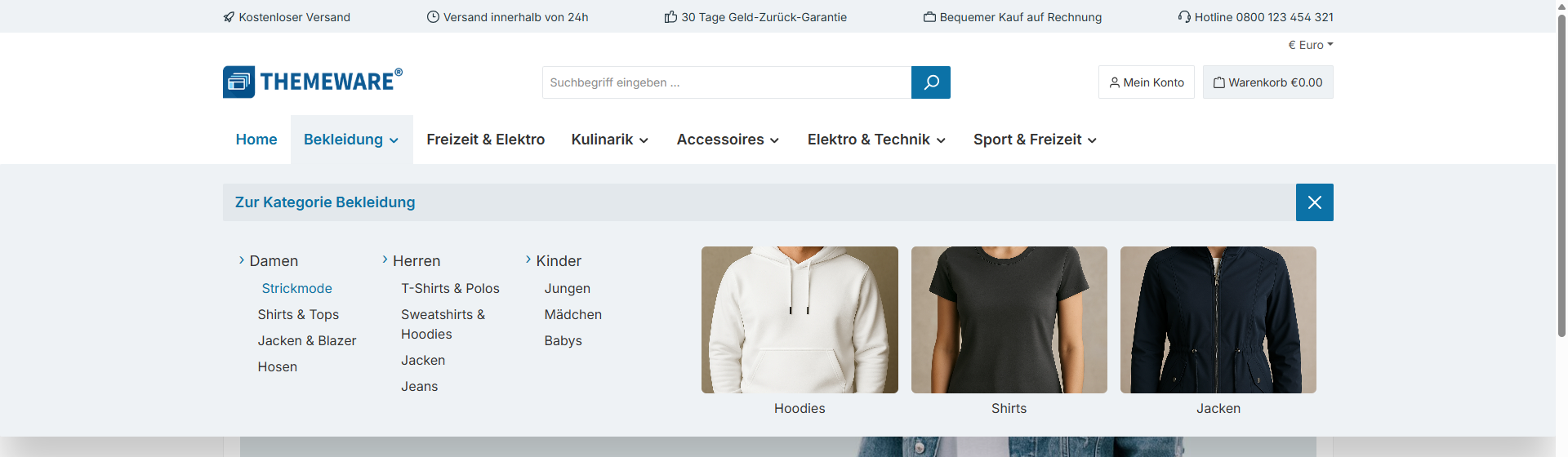

<figure><img src="/files/erIypbh5BStk9uC9d8oV" alt=""><figcaption><p>ThemeWare® Flyout with cards</p></figcaption></figure>

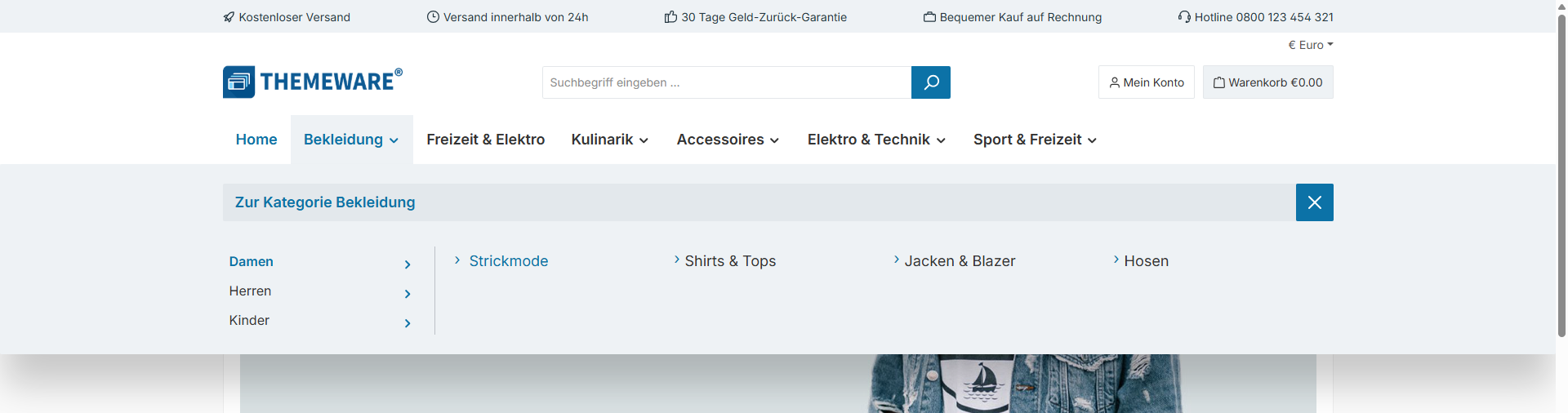

<figure><img src="/files/zWA0Cn1uFUzh77OYzYDE" alt=""><figcaption><p>ThemeWare® Flyout with sidebar</p></figcaption></figure>

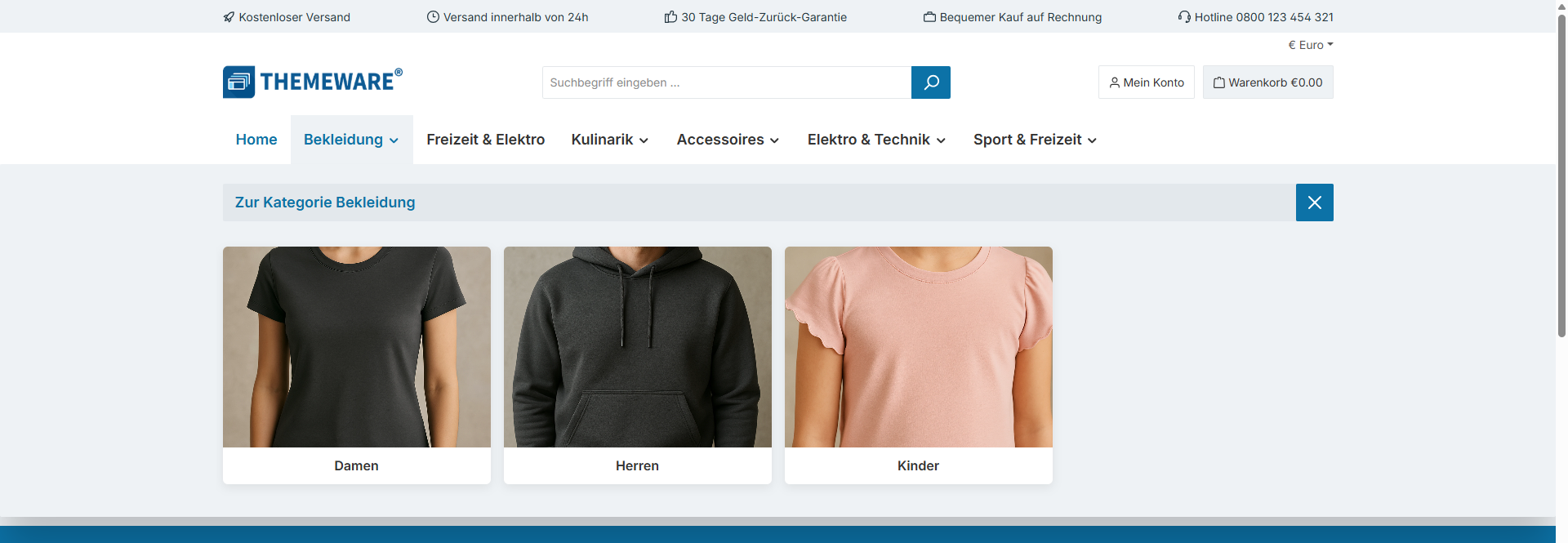

<figure><img src="/files/6oNqgOp2Rio49akYss7P" alt=""><figcaption><p>ThemeWare® Flyout with teasers</p></figcaption></figure>

{% hint style="info" %}
**\*) Note**: Currently not available in the "Full-width sticky header".
{% endhint %}

{% hint style="info" %}
**Note**: In the layout type "ThemeWare® Flyout with cards", categories of the type "folder" are not displayed because every card needs a target.
{% endhint %}

## Design

***

### Flyout

**Field type**:\
Select

**Available values**:\
• List\
• List (Shopware 6)\
• List in columns (Shopware 5)\
• Buttons

**Example value**:\
`List`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Design"

**Technical name**:\
`twt-nav-main-flyout-design`

{% hint style="info" %}
Select the design of the flyout.

**List (Shopware 6)**: A line to the left of the categories ensures a clear structure in the flyout.

**List**: Instead of the line used in Shopware 6, arrows are displayed in front of the categories, as in ThemeWare® for Shopware 5.

**List in columns (Shopware 5)**: The categories are arranged in columns as in the flyout of Shopware 5, the links keep the arrows of the design "List". This design only applies to the flyout — "Flyout with cards", "Flyout with sidebar" and "Flyout with teasers" keep the design "List".

**Buttons**: Every category gets its own surface with rounded corners. The surface colours are set in the "Colours" section.

**Note**: The Shopware 5 layout is not recommended if the number of subcategories varies greatly.
{% endhint %}

***

### Dropdown navigation

**Field type**:\
Select

**Available values**:\
• List\
• Buttons\
• Buttons (compact)

**Example value**:\
`Buttons (compact)`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Design"

**Technical name**:\
`twt-nav-main-dropdown-design`

{% hint style="info" %}
Select the design of the dropdown navigation.

**List**: Plain text without surfaces and without separator lines. The arrow on menu items with subcategories remains.

**Buttons (compact)**: Every menu item is a surface across the full width of the card, separated by lines.

**Buttons**: The card gets inner spacing, the menu items become inset surfaces with rounded corners.

**Beta**: This feature may change in an upcoming update, but feel free to test it and send us your feedback.
{% endhint %}

## Basic configuration

***

### Animation

**Field type**:\
Select

**Available values**:\
• no animation (default)\
• Fade in\
• Fade in from below\
• Bounce from below\
• Fade in from above\
• Bounce from above\
• Unfold (3D) #beta

**Example value**:\
`Fade in`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Basic configuration"

**Technical name**:\
`twt-nav-main-flyout-animation`

***

### Navigation levels

**Field type**:\
Select

**Available values**:\
• 1 level\
• 2 levels\
• 3 levels (default)\
• 4 levels\
• 5 levels

**Example value**:\
`3 levels`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Basic configuration"

**Technical name**:\
`twt-nav-main-max-depth`

{% hint style="info" %}
Maximum number of category levels rendered in the navigation (applies to the "ThemeWare® Flyout", "ThemeWare® Dropdown" and "ThemeWare® Flyout with sidebar" modes).

Will only render up to the sales channel's "Navigation levels" setting (Admin → Sales Channels → \[Channel] → Navigation), as deeper categories are not loaded into the storefront.
{% endhint %}

## Basic configuration 'ThemeWare® Flyout'

***

### Sizing mode

**Field type**:\
Select

**Available values**:\
• Container-Max-Width (Full-width Boxed)\
• 100% (Full-width)\
• Boxed\
• Custom width

**Example value**:\
`Container-Max-Width (Full-width Boxed)`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Basic configuration 'ThemeWare® Flyout'"

**Technical name**:\
`twt-nav-main-flyout-sizing-mode`

{% hint style="info" %}
Choose whether the flyout matches the container or spans full width.
{% endhint %}

***

### Custom width

**Field type**:\
Text field

**Example value**:\
`100%`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Basic configuration 'ThemeWare® Flyout'"

**Technical name**:\
`twt-nav-main-flyout-width`

{% hint style="info" %}
Set the width for the flyout.

**Default**: 100%

A value other than 100% is used as max-width. In this case, the flyout extends across the full width but does not exceed the selected value.

**Example**: 1080px
{% endhint %}

***

### Drop shadow

**Field type**:\
Select

**Available values**:\
• no shadow\
• Small shadow\
• Regular shadow\
• Larger shadow\
• Soft shadow (ThemeWare®)

**Example value**:\
`Soft shadow (ThemeWare®)`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Basic configuration 'ThemeWare® Flyout'"

**Technical name**:\
`twt-nav-main-flyout-box-shadow-type`

{% hint style="info" %}
Drop shadow of the flyout panel.

The graduated shadows match the ones of the dropdown navigation, but are pulled in at the top so that nothing shows above the navigation bar — the flyout sits flush below it.

**Soft (ThemeWare®)** is the long-standing ThemeWare® shadow: wide and soft.
{% endhint %}

***

### Indentation

**Field type**:\
Text field

**Example value**:\
`10`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Basic configuration 'ThemeWare® Flyout'"

**Technical name**:\
`twt-nav-main-flyout-categories-margin-left`

{% hint style="info" %}
Set the indentation for subcategories in the flyout (in pixels).

**Default**: 20
{% endhint %}

## Basic configuration 'ThemeWare® Flyout with cards'

***

### Columns

**Field type**:\
Select

**Available values**:\
• Automatic\
• 3 columns\
• 4 columns\
• 5 columns\
• 6 columns

**Example value**:\
`Automatic`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Basic configuration 'ThemeWare® Flyout with cards'"

**Technical name**:\
`twt-nav-main-flyout-cards-columns`

{% hint style="info" %}
Set how many cards are displayed side by side. The value applies to very large screens, smaller screens reduce the number automatically: at most 4 cards on desktop, at most 3 on tablets and always 2 on smartphones.

**Automatic**: 4 cards from large screens — in the sizing mode "100% (Full-width)" 6 cards from very large screens.

**Note**: This setting only applies to the "ThemeWare® Flyout with cards" mode.
{% endhint %}

## Basic configuration 'ThemeWare® Dropdown'

***

### Drop shadow

**Field type**:\
Select

**Available values**:\
• no shadow (default)\
• Small shadow (Bootstrap)\
• Regular shadow (Bootstrap)\
• Larger shadow (Bootstrap)

**Example value**:\
`Regular shadow (Bootstrap)`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Basic configuration 'ThemeWare® Dropdown'"

**Technical name**:\
`twt-nav-main-dropdown-box-shadow-type`

{% hint style="info" %}
Adds a drop shadow to the submenus.

**Beta**: This feature may change in an upcoming update, but feel free to test it and send us your feedback.
{% endhint %}

## Colour configuration

***

### Text colour (menu items)

**Field type**:\
Color picker

**Example value**:\
`#333333`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Colour configuration"

**Technical name**:\
`twt-nav-main-flyout-categories-color`

***

### Text colour (menu items) @hover

**Field type**:\
Color picker

**Example value**:\
`$sw-color-brand-primary`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Colour configuration"

**Technical name**:\
`twt-nav-main-flyout-categories-color-hover`

***

### Text colour (menu items) @active

**Field type**:\
Color picker

**Example value**:\
`$sw-color-brand-primary`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Colour configuration"

**Technical name**:\
`twt-nav-main-flyout-categories-color-active`

***

### Background colour (menu items)

**Field type**:\
Color picker

**Example value**:\
`#ffffff`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Colour configuration"

**Technical name**:\
`twt-nav-main-flyout-categories-background-color`

{% hint style="info" %}
Colours the surface of a single menu item.

**Note**: In the flyout this setting is only applied when the design "Buttons" is set. In the dropdown navigation it is applied in the designs "Buttons (compact)" and "Buttons".
{% endhint %}

***

### Background colour (menu items) @hover

**Field type**:\
Color picker

**Example value**:\
`#e3e8ec`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Colour configuration"

**Technical name**:\
`twt-nav-main-flyout-categories-background-color-hover`

{% hint style="info" %}
Colours the surface of a menu item on hover.

**Note**: In the flyout this setting is only applied when the design "Buttons" is set. In the dropdown navigation it is applied in the designs "Buttons (compact)" and "Buttons".
{% endhint %}

***

### Background colour (menu items) @active

**Field type**:\
Color picker

**Example value**:\
`#e3e8ec`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Colour configuration"

**Technical name**:\
`twt-nav-main-flyout-categories-background-color-active`

{% hint style="info" %}
Colours the surface of the menu item of the active category. Hovering it shows the hover colour.

**Note**: In the flyout this setting is only applied when the design "Buttons" is set. In the dropdown navigation it is applied in the designs "Buttons (compact)" and "Buttons".
{% endhint %}

***

### Icon colour (menu items)

**Field type**:\
Color picker

**Example value**:\
`$sw-color-brand-primary`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Colour configuration"

**Technical name**:\
`twt-nav-main-flyout-categories-icon-color`

***

### Colour (separator)

**Field type**:\
Color picker

**Example value**:\
`#bcc1c7`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Colour configuration"

**Technical name**:\
`twt-nav-main-flyout-seperator-color`

{% hint style="info" %}
**Note**: This configuration refers to the separator line in the design "List (Shopware 6)" and to the separator lines in the dropdown design "Buttons (compact)".
{% endhint %}

***

### Background colour (panel)

**Field type**:\
Color picker

**Example value**:\
`#eef2f5`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Colour configuration"

**Technical name**:\
`twt-nav-main-flyout-background-color`

{% hint style="info" %}
Colours the surface of the submenu itself: the wide panel in the flyout, the card in the dropdown navigation.
{% endhint %}

***

### Glass effect \[px] (panel)

**Field type**:\
Number field

**Example value**:\
`0`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Colour configuration"

**Technical name**:\
`twt-nav-main-flyout-backdrop-effect-blur`

{% hint style="info" %}
Blurs the content behind the panel and thereby creates a glass effect in the style of "Liquid Glass". Recommended value: 10.

**Note**: The effect only becomes visible if a semi-transparent colour is selected as the background colour.
{% endhint %}

## Level 1

***

### Font family

**Field type**:\
Select

**Available values**:\
• Text\
• Headlines

**Example value**:\
`Text`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Level 1"

**Technical name**:\
`twt-nav-main-flyout-font-family`

***

### Font size

**Field type**:\
Number field

**Example value**:\
`18`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Level 1"

**Technical name**:\
`twt-nav-main-flyout-font-size`

***

### Font weight

**Field type**:\
Select

**Available values**:\
• light\
• normal\
• bold

**Example value**:\
`normal`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Level 1"

**Technical name**:\
`twt-nav-main-flyout-font-weight`

***

### Text formatting

**Field type**:\
Select

**Available values**:\
• none\
• uppercase\
• lowercase\
• capitalize

**Example value**:\
`none`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Level 1"

**Technical name**:\
`twt-nav-main-flyout-text-transform`

## Level 2

***

### Font family

**Field type**:\
Select

**Available values**:\
• Text\
• Headlines

**Example value**:\
`Text`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Level 2"

**Technical name**:\
`twt-nav-main-flyout-level1-font-family`

***

### Font size

**Field type**:\
Number field

**Example value**:\
`16`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Level 2"

**Technical name**:\
`twt-nav-main-flyout-level1-font-size`

***

### Font weight

**Field type**:\
Select

**Available values**:\
• light\
• normal\
• bold

**Example value**:\
`normal`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Level 2"

**Technical name**:\
`twt-nav-main-flyout-level1-font-weight`

***

### Text formatting

**Field type**:\
Select

**Available values**:\
• none\
• uppercase\
• lowercase\
• capitalize

**Example value**:\
`none`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Level 2"

**Technical name**:\
`twt-nav-main-flyout-level1-text-transform`

## Level 3...

***

### Font family

**Field type**:\
Select

**Available values**:\
• Text\
• Headlines

**Example value**:\
`Text`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Level 3..."

**Technical name**:\
`twt-nav-main-flyout-level2-font-family`

***

### Font size

**Field type**:\
Number field

**Example value**:\
`16`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Level 3..."

**Technical name**:\
`twt-nav-main-flyout-level2-font-size`

***

### Font weight

**Field type**:\
Select

**Available values**:\
• light\
• normal\
• bold

**Example value**:\
`normal`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Level 3..."

**Technical name**:\
`twt-nav-main-flyout-level2-font-weight`

***

### Text formatting

**Field type**:\
Select

**Available values**:\
• none\
• uppercase\
• lowercase\
• capitalize

**Example value**:\
`none`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Level 3..."

**Technical name**:\
`twt-nav-main-flyout-level2-text-transform`

## Categorie button

***

### Show flyout bar (Category link and the close button)

**Field type**:\
Select

**Available values**:\
• don't show\
• show at top\
• show at bottom (currently inactive)

**Example value**:\
`show at top`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Categorie button"

**Technical name**:\
`twt-nav-main-flyout-bar-show`

{% hint style="info" %}
The "Flyout bar" consists of a category link and the close button.

**Accessibility concerns**:\
Disabling this feature may make parts of your storefront inaccessible to users with disabilities. This may result in non-compliance with accessibility laws applicable in your jurisdiction (e.g., the European Accessibility Act). By disabling the "Flyout bar" you acknowledge this risk and accept full responsibility.
{% endhint %}

***

### Padding top/bottom

**Field type**:\
Number field

**Example value**:\
`15`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Categorie button"

**Technical name**:\
`twt-nav-main-flyout-bar-padding-top-bottom`

***

### Padding left/right

**Field type**:\
Number field

**Example value**:\
`15`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Categorie button"

**Technical name**:\
`twt-nav-main-flyout-bar-padding-left-right`

***

### Text colour

**Field type**:\
Color picker

**Example value**:\
`$sw-color-brand-primary`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Categorie button"

**Technical name**:\
`twt-nav-main-flyout-bar-color`

***

### Text colour @hover

**Field type**:\
Color picker

**Example value**:\
`#333333`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Categorie button"

**Technical name**:\
`twt-nav-main-flyout-bar-color-hover`

***

### Background colour

**Field type**:\
Color picker

**Example value**:\
`#e3e8ec`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Categorie button"

**Technical name**:\
`twt-nav-main-flyout-bar-background-color`

## Close button

***

### Padding

**Field type**:\
Number field

**Example value**:\
`15`

**Path to the configuration**:\
Tab "Header" => Block "Top navigation flyout" => Section "Close button"

**Technical name**:\
`twt-nav-main-flyout-close-btn-padding`
